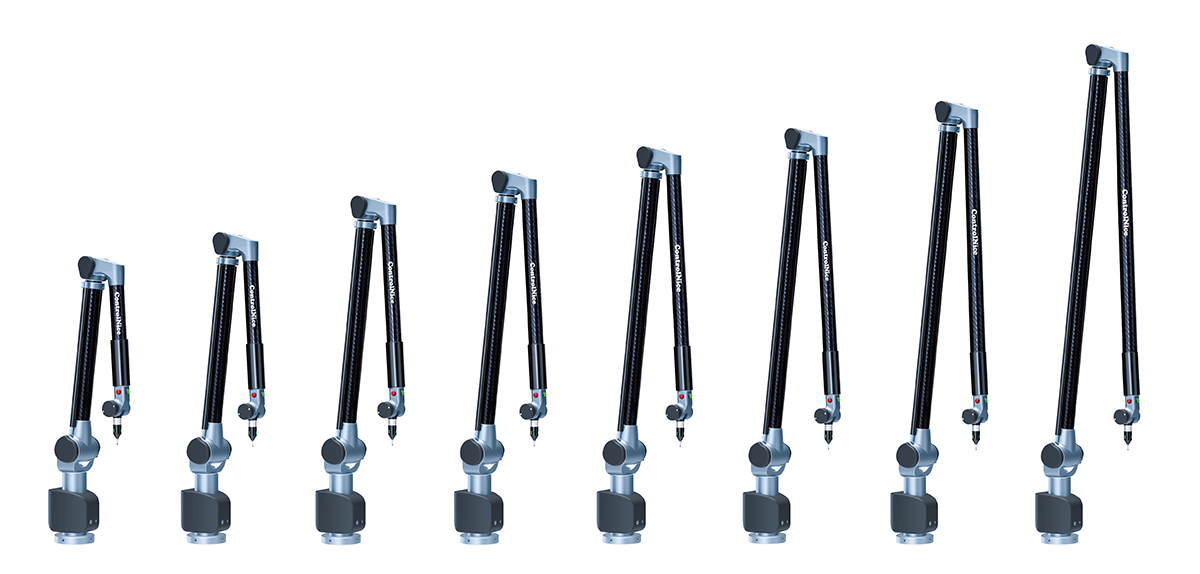

HX Standard Series:
HX Series Arm-Type Coordinate Measuring Machine, capable of measuring the dimensions, shapes and positional accuracy of complex components, featuring flexible use, precise measurement, high efficiency and ease of portability.
HX Customized Series:

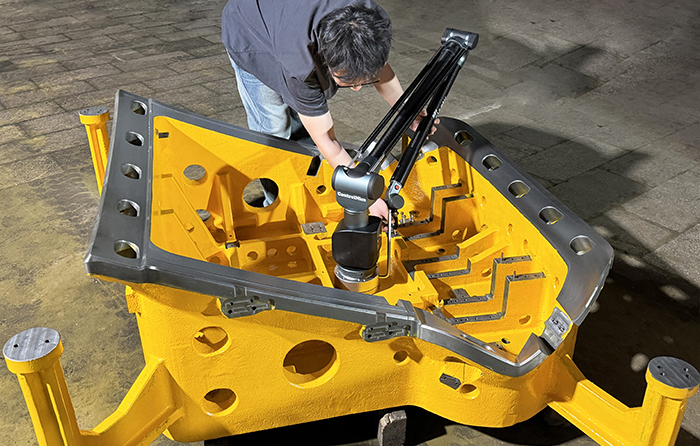

The HX non-standard customized high-precision joint arm series can measure the high-precision dimensions of molds, aerospace, and scientific research institutions, with an accuracy up to the micrometer level.
Characteristics of the HX series products:
The HX series Huaxia Arm Measuring Machine is a product independently developed and manufactured by us. It is specifically designed to address the challenges of precise measurement in complex environments.
1. Aviation-grade composite materials: Made of high-quality aviation alloy materials; featuring light weight and sturdy structure; the overall weight ranges from 8.9 to 17.5 kg, with a protection level of IP54.
2. Built-in temperature sensor: Equipped with a built-in temperature compensation system, which automatically compensates and corrects, ensuring measurement accuracy within the range of 0 - 45°C.
3. Dual-balancing mechanism: Utilizes an external dual-balancing system with four-point support, ensuring uniform force distribution.
4. Infinite rotation of the spindle: The spindle rotates infinitely, ensuring no measurement blind spots.
5. Built-in lithium battery: Equipped with a high-performance lithium battery pack, which enables the joint arm to operate without an external power source. Under normal usage, it can last for 8 hours.
6. Wireless Bluetooth: Point-to-point connection, with higher security, lower energy consumption, long transmission distance, eliminating the hassle of wireless cabling.
7. Mechanical locking mechanism: Equipped with a safety protection lock, which can effectively prevent the measuring arm from accidentally falling.
8. Multi-point Collection System: Multi-point Collection Button; Data Collection is More Flexible
Measurement range:

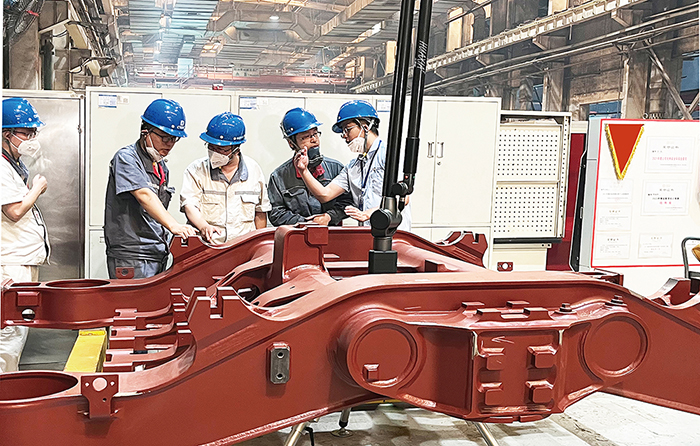

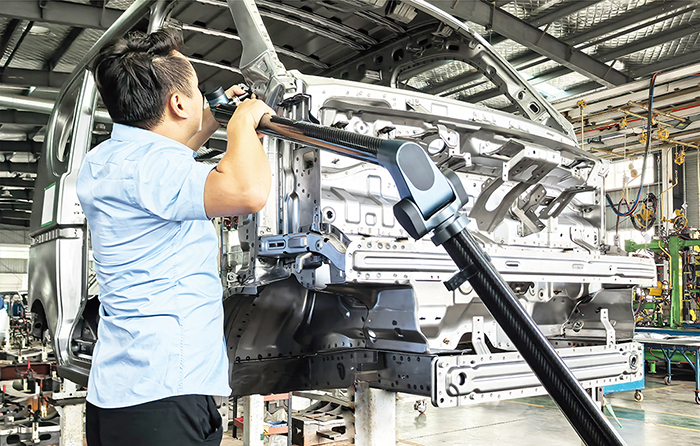

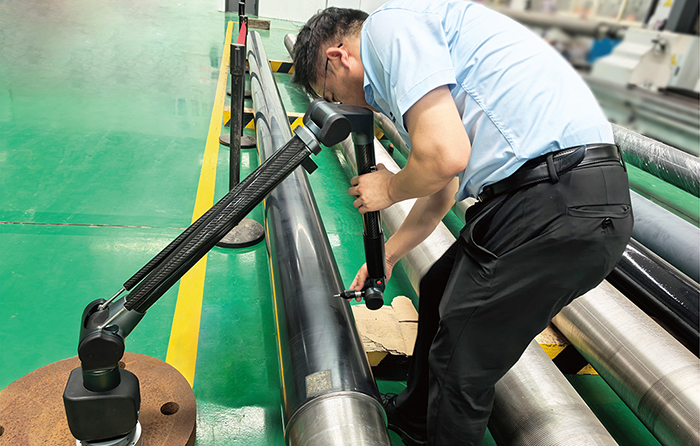

The measurement range is from 2.0 meters to 6.0 meters. It is suitable for various applications such as product quality control, new product development, installation and commissioning, and maintenance. The operation is simple.
