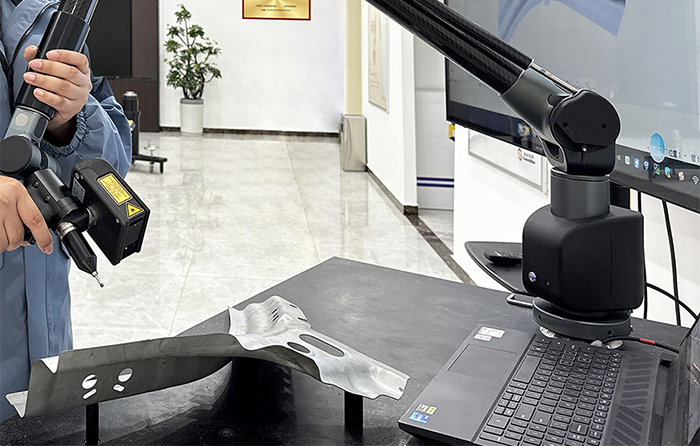

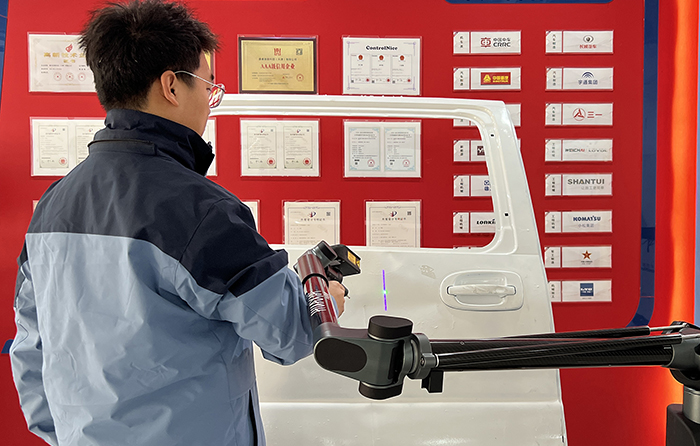

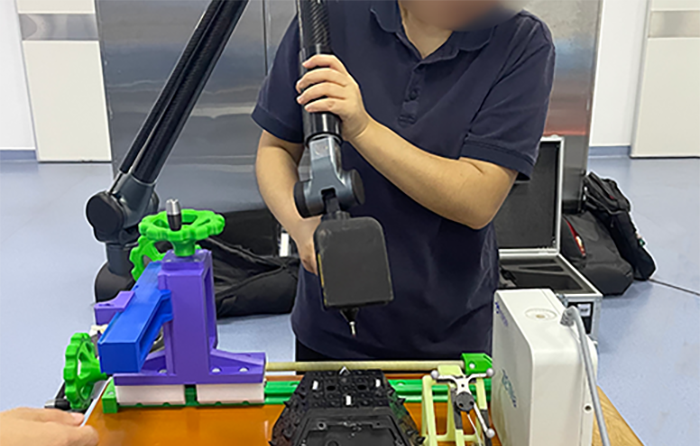

The HX series 7-axis Huaxia Arm measuring machine can be equipped with a blue light scanner head, enabling it to simultaneously perform blue light three-dimensional scanning and contact measurement functions. It can also be optionally equipped with different measuring heads such as pipe joint laser forks, allowing for flexible switching of the measuring heads without the need for re-calibration. No powder spraying is required, and it can easily scan highly reflective and darkly shiny materials.
Measurement Range
The measurement range is from 2.0 meters to 6.0 meters. It is suitable for various applications such as product quality control, new product development, installation and commissioning, and maintenance. The operation is simple.
Product Features
The HX series Huaxia Arm Measuring Machine is a product independently developed and manufactured by us. It is specifically designed to address the challenges of precise measurement in complex environments.
1. Aviation-grade composite materials: Made of high-quality aviation alloy materials; featuring light weight and sturdy structure; the overall weight ranges from 8.9 to 17.5 kg, with a protection level of IP54.
2. Built-in temperature sensor: Equipped with a built-in temperature compensation system, which automatically compensates and corrects, ensuring measurement accuracy within the range of 0 - 45°C.
3. Dual-balancing mechanism: Utilizes an external dual-balancing system with four-point support, ensuring uniform force distribution.
4. Infinite rotation of the spindle: The spindle rotates infinitely, ensuring no measurement blind spots.
5. Built-in lithium battery: Equipped with a high-performance lithium battery pack, which enables the joint arm to operate without an external power source. Under normal usage, it can last for 8 hours.
6. Wireless Bluetooth: Point-to-point connection, with higher security, lower energy consumption, long transmission distance, eliminating the hassle of wireless cabling.
7. Mechanical locking mechanism: Equipped with a safety protection lock, which can effectively prevent the measuring arm from accidentally falling.
8. Multi-point Collection System: Multi-point collection button; Data collection becomes more flexible
A wide variety of selectable probes are available.
In addition to using traditional mechanical hard probes, the HX series joint arm measuring machine is also compatible with pipe fittings laser forks, laser scanning heads, etc. The probes can be switched at will without the need for re-calibration.
 |
 |
 |
 |
 |
| Hard probe head | Trigger probe | Floating probe | Pipe fitting laser cutter | Blue light scanning head |
Widely applicable scenarios
It is widely applied in various fields such as aerospace, automotive manufacturing, construction machinery, shipbuilding, new energy, and rail transportation. Specific applications include:
1. Online inspection: Conduct direct inspections at production sites such as welding lines and assembly positions, reducing the need for material handling and enabling real-time quality control.
2. Reverse Engineering: Quickly obtain point cloud data of the product's surface, which can be used for design, modification or spare part replication.
3. Wear detection: Conduct assessments of wear and deformation of key components of in-use equipment to provide data support for maintenance decisions.
